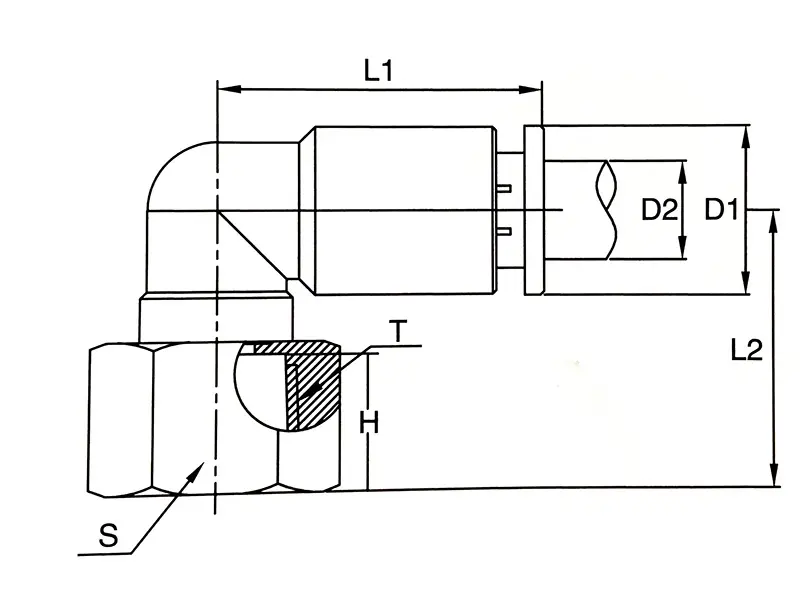

| PLF-Elbow female push in fittings(360° rotatable thread) | Model | L1 | L2 | H | S | T | D1 | D2 |
  |
NPLF6-01 | 24 | 21 | 8 | 14 | G1/8 | 12 | 6 |
| NPLF6-02 | 24 | 23 | 9.5 | 16 | G1/4 | 12 | 6 | |
| NPLF6-03 | 24 | 25 | 11 | 21 | G3/8 | 12 | 6 | |
| NPLF6-04 | 24 | 26 | 13 | 24 | G1/2 | 12 | 6 | |
| NPLF8-01 | 26 | 22 | 8 | 14 | G1/8 | 14 | 8 | |
| NPLF8-02 | 26 | 24 | 9.5 | 16 | G1/4 | 14 | 8 | |
| NPLF8-03 | 26 | 26 | 11 | 21 | G3/8 | 14 | 8 | |
| NPLF8-04 | 26 | 27 | 13 | 24 | G1/2 | 14 | 8 | |
| NPLF10-01 | 29 | 23 | 8 | 14 | G1/8 | 16 | 10 | |
| NPLF10-02 | 29 | 25 | 9.5 | 16 | G1/4 | 16 | 10 | |
| NPLF10-03 | 29 | 27 | 11 | 21 | G3/8 | 16 | 10 | |
| NPLF10-04 | 29 | 28 | 13 | 24 | G1/2 | 16 | 10 | |
| NPLF12-02 | 31 | 26 | 9.5 | 16 | G1/4 | 18 | 12 | |
| NPLF12-03 | 31 | 27 | 11 | 21 | G3/8 | 18 | 12 | |
| NPLF12-04 | 31 | 28 | 13 | 24 | G1/2 | 18 | 12 | |
| NPLF8-M16*1.5 | M16*1.5 | 8 | ||||||
| NPLF10-M16*1.5 | M16*1.5 | 10 | ||||||
| NPLF12-M16*1.5 | M16*1.5 | 12 | ||||||
| The size is measured manually, there may be slight deviations,only for reference | ||||||||
Main features

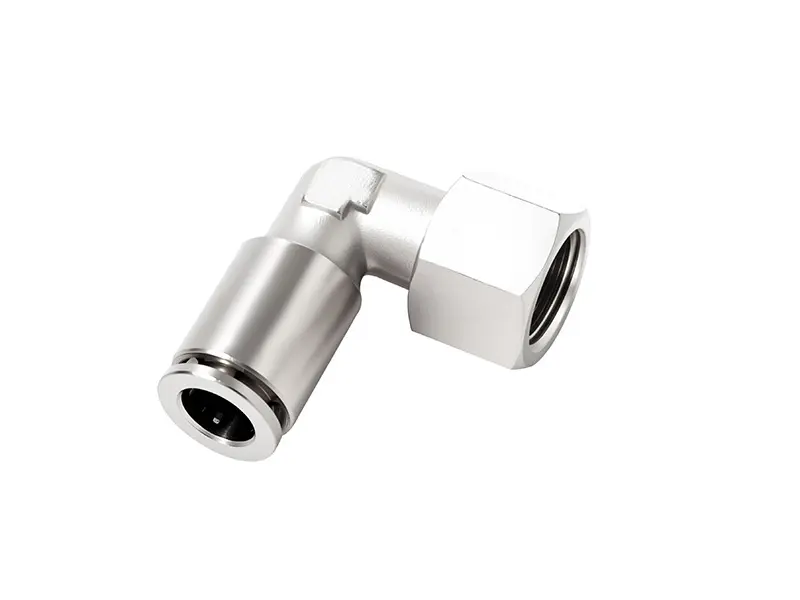

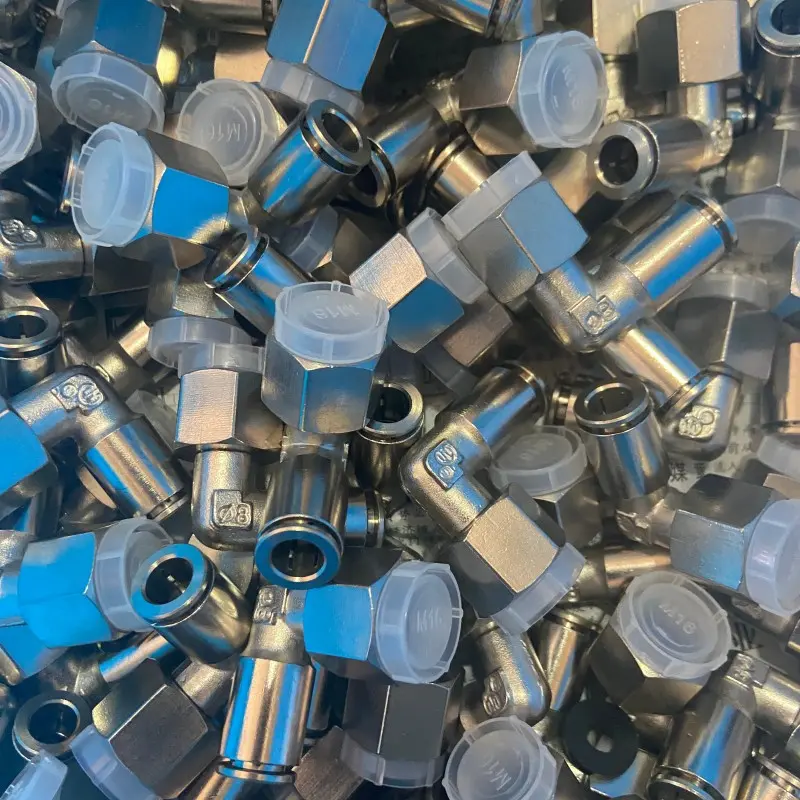

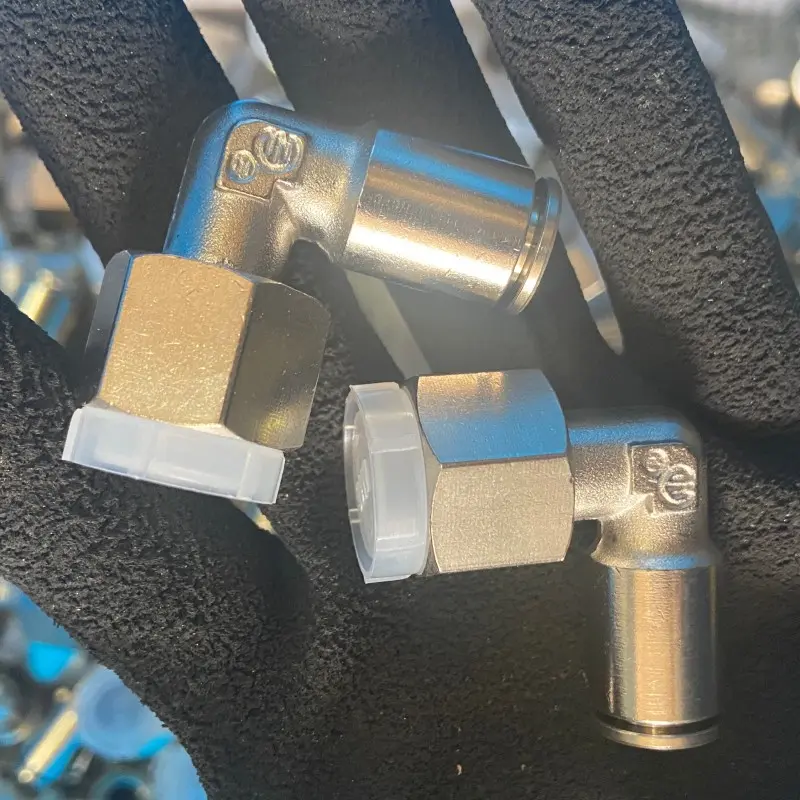

This 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow is a high-end fitting made for seamless operation, flexibility, and durability. It will upgrade your pneumatic systems. This elbow is designed to satisfy the greatest levels of quality and dependability, regardless of whether you work in manufacturing, automotive, or industrial settings.
Key Features
360° Rotatable Design
The innovative rotating thread makes it easy to install and align in tight or challenging spaces. This flexibility reduces the stress on related components and ensures optimal alignment for efficient airflow.
High-Quality Material:
This elbow is made of sturdy brass and has a nickel plating that prevents corrosion. It is designed to survive exposure to high pressure, chemicals, and moisture, among other tough circumstances.
Quick-Connect Mechanism:
The push-in-connect design saves time during installation and maintenance by guaranteeing quick, safe, and leak-free connections.
Wide Compatibility:
Pneumatic systems and a range of tubing sizes are compatible, giving it an adaptable option for a number of uses.
High-Pressure and Temperature Resistance:
intended to operate consistently in challenging environments by performing dependably in a broad temperature range and under high pressure.
Applications:
This quick-connect elbow is ideal for use in:
Industrial Machinery: Pneumatic tools, assembly lines, and automation systems.
Automotive Systems: Air compressors, brake systems, and fluid transfer applications.
Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.
General Pneumatic Systems: Air conditioning, HVAC systems, and more.
Why Choose Our Product?
Enhanced Flexibility: The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.
Durability: Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.
Efficiency: The quick-connect design minimizes downtime and ensures a secure, leak-free connection.
Versatility: Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.
Technical Specifications:
Material: Brass with Nickel Plating
Rotation: 360° Rotatable Thread
Connection Type:Push in
Pressure Rating:0-2.5Mpa
Temperature Range: -40-250℃（according to the inside o-ring）
