Product Description
PC male push in straight fittings is an efficient and convenient fluid connection device, widely used in Energy storage fire protection. It is designed to simplify the installation process and improve the reliability and safety of the flame-retardant pipeline system.
|
Material |
Nickel plated brass |
|
Working pipe |
Flame-retardant pipe |
|
Working pressure |
0-6.0Mpa |
|
Working temperature |
-20℃-100℃(HNBR sealing) |
Product Description:
|

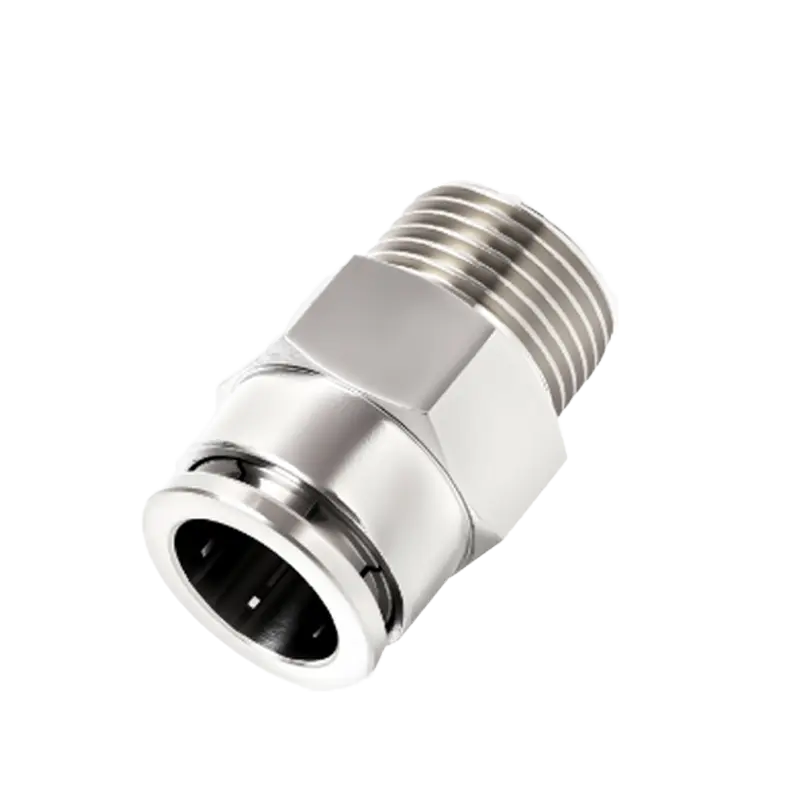

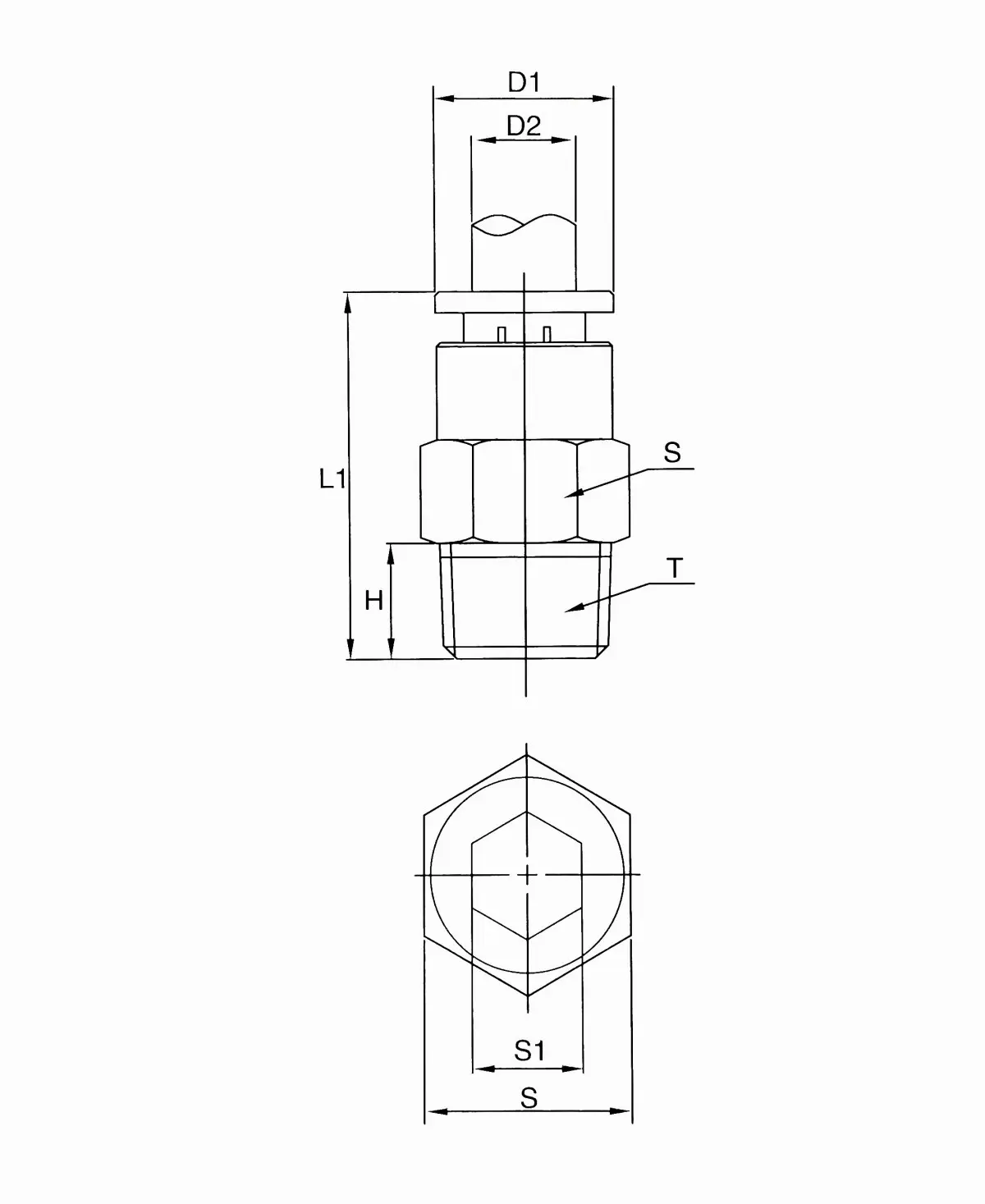

PC-straight push in fittings |
Model |
L1 |
S1 |
H |
S |
T |
D1 |
D2 |
|
|
NPC4-M5 |
22 |
2 |
5.5 |
10 |
M5*1 |
9 |
4 |
|
NPC4-M6 |
22 |
2 |
5.5 |
10 |
M6*1 |
9 |
4 |
|
|
NPC4-M8*1 |
22 |
2 |
7 |
10 |
M8*1 |
9 |
4 |
|
|
NPC4-10*1 |
23 |
2 |
7 |
12 |
M10*1 |
9 |
4 |
|
|
NPC4-01 |
23 |
2 |
7 |
10 |
R1/8 |
9 |
4 |
|
|
NPC4-02 |
24 |
2 |
9 |
14 |
R1/4 |
9 |
4 |
|
|
NPC6-01 |
25 |
5 |
7 |
12 |
R1/8 |
12 |
6 |
|
|
NPC6-02 |
25 |
5 |
9 |
14 |
R1/4 |
12 |
6 |
|
|
NPC6-03 |
22 |
5 |
10 |
17 |
R3/8 |
12 |
6 |
|
|
NPC6-04 |
22 |
5 |
11 |
21 |
R1/2 |
12 |
6 |
|
|
NPC8-01 |
28 |
5 |
7 |
14 |
R1/8 |
14 |
8 |
|
|
NPC8-02 |
28 |
6 |
9 |
14 |
R1/4 |
14 |
8 |
|
|
NPC8-03 |
22 |
6 |
10 |
17 |
R3/8 |
14 |
8 |
|
|
NPC8-04 |
22 |
6 |
11 |
21 |
R1/2 |
14 |
8 |
|
|
NPC10-01 |
30 |
5 |
7 |
17 |
R1/8 |
16 |
10 |
|
|
NPC10-02 |
31 |
6 |
9 |
16 |
R1/4 |
16 |
10 |
|
|
NPC10-03 |
31 |
8 |
10 |
17 |
R3/8 |
16 |
10 |
|
|
NPC10-04 |
25 |
8 |
11 |
21 |
R1/2 |
16 |
10 |
|
|
NPC12-01 |
30 |
5 |
7 |
19 |
R1/8 |
16 |
12 |
|
|
NPC12-02 |
32 |
6 |
9 |
19 |
R1/4 |
18 |
12 |
|
|
NPC12-03 |
31 |
9 |
10 |
19 |
R3/8 |
18 |
12 |
|
|
NPC12-04 |
25 |
9 |
11 |
21 |
R1/2 |
18 |
12 |
|
|
NPC14-02 |
30 |
6 |
9 |
22 |
R1/4 |
21 |
14 |
|
|
NPC14-03 |
31 |
9 |
10 |
22 |
R3/8 |
21 |
14 |
|
|
NPC14-04 |
33 |
12 |
11 |
22 |
R1/2 |
21 |
14 |
|
|
NPC14-06 |
38 |
12 |
13 |
27 |
R3/4 |
21 |
14 |
|
|
NPC16-04 |
35 |
12 |
11 |
24 |
R1/2 |
23 |
16 |
|
|
NPC16-06 |
38 |
14 |
13 |
27 |
R3/4 |
23 |
16 |
|
|
The size is measured manually, there may be slight deviations,only for reference |
||||||||
The brass nickel-plated straight quick-connect is a component designed forEnergy storage fire protection. Its core features include the use of brass nickel-plated material and a quick-connect function, significantly enhancing work efficiency and safety.
Main features:
1.Quick installation:
adopts a one-button plug-in design, which can be quickly connected and disconnected without tools, greatly saving installation and maintenance time.
2.High sealing:
equipped with high-quality sealing rings to ensure that the connector can still maintain good sealing performance under high pressure and high temperature environment to prevent leakage.
3.Durable material:
Made of H59-1 brass material, it is corrosion-resistant and wear-resistant, suitable for a variety of environments.Nickel Plating further enhances corrosion resistance, making it suitable for harsh environments.Increases surface hardness,improving wear resistance and extending the coupling’s lifespan.Aesthetic appeal, enhancing the product’s overall quality.
4.Various specifications:
complete specifications to meet the assembly requirements of different size of threaded and pipes.This versatility ensures that the right coupling can be selected for any specific application, enhancing overall system compatibility.
5.Wide use media: suitable for the transmission of various media such as water, oil, gas, etc.
6.Applications:The brass nickel-plated straight quick-connect pneumatic coupling is widely used in the following fields:Automation equipment,Pneumatic tools,Medical devices,Food and beverage industry,Electronics and electrical appliances and so on.
The brass nickel-plated straight Energy storage fire protection is a versatile and reliable component that offers numerous advantages, including quick-connect functionality, reliable sealing, and strong corrosion resistance. Its robust construction and ease of installation make it an ideal choice for a wide range of applications across various industries. By selecting the appropriate coupling for your specific needs, you can enhance the efficiency, safety, and longevity of your pneumatic system.
